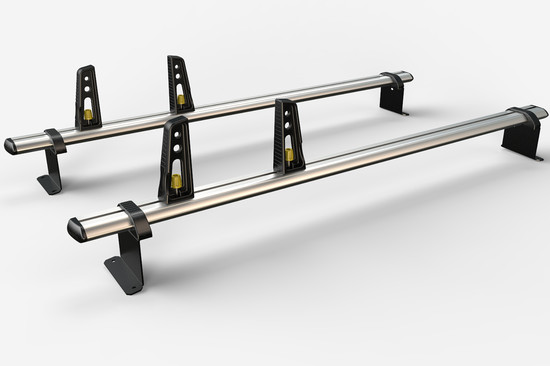

2 Van Guard Ulti Bar+ Van Roof BarsFiat Doblo 2010-2021VG284-2
- £122.99 inc. VAT£102.49 exc. VATView product detailsProduct code: VG284-2
Van Guard ULTI Bar+ VG284-2 Suits the Fiat Doblo 2010-2021 SWB LOW ROOF (L1 H1) LWB LOW ROOF (L2 H1) TWIN DOOR OR TAILGATE
ULTI Bar+ - The ULTIMATE heavy duty aerodynamic van roof bar by Van Guard Accessories.
ULTI Bar+ roof bars offer possibly the best Value, aerodynamic aluminium roof bar system available today, which is why when surveyed they came out on Top as the Ultimate Van Roof Bar
During the design process ULTI Bar+ van roof bars were tested using CFD techniques and shown to offer up-to 89% less drag & up-to 70% less wind noise to competitors roof bars.
ULTI Bar+'s are made from super light-weight, high strength aluminium extrusion which is then anodised for a durable great looking finish and offer a generous 55 kg load capacity per bar.
Practical Features Built In
ULTI Bar+ features a useful T-Slot along the top of the bar, this slot allows quick mounting of the composite Load Stops which are included for Free (Worth ÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂã48.00) & a range of Optional accessories like eye-bolts, beacon brackets and more.
Safety First
ULTI Bar+ is 20g crash tested assuring you safe transportation of loads up-to 55 kg per bar where applicable for the vehicle type.
Fitting the ULTI Bar+ by Van Guard Accessories

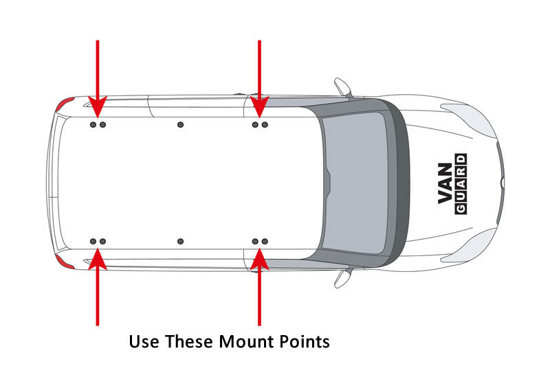

ULTI Bar+ Roof Bars come complete with detailed step by step fitting instructions and fixings for quick and easy installation to the vehicles factory locations with no drilling required.
Tools required
Either
2 x 13mm spanners or sockets / ratchets
2 x 10mm spanner or socket / ratchet
1 Person Installation
See the Optional Accessories for the Van Guard ULTI Bar+ using the Accessories Tab Above
- Additional Load Stops
- Rear Roller
- Pipe Tube Carriers
- Ladder Clamps
- Eyebolts
- Wind Deflector
Key Features
- Crash Tested
- 12 Month Warranty
- Aeodynamic : Minimises drag & wind noise
- Anodised Aluminium : Lightweight. Strong & Stylish
- Two pairs adjustable load stops included
- Easily Mounts to factory locations, all fixings included
- Optional rear roller
Specification
- MPNVG284-2
- To SuitFiat Doblo 2010-2021 L1H1 / L2H1
- Rear Door TypeAll
- No Of Bars Included2 ULTI Bar+
- Dimensions Cross Bars1300(L)60(W)30(D)
- Maximum Load (kg)80 (per bar)
- Bar T-Track Size21mm x 8mm
- MaterialAluminium
- ColourSilver
- Fitted Weight (kg)7
- Fitting Time (Mins)20
- Height to underside of 1st bar95mm
- 2ns bar97mm
Product Questions
- Q
I am assuming that the load guards for the Van Guard ULTI Bar slide inside the groove from the end of the bar? If this is the case and I wanted to attach a tripod head to the bar with a 3/8 bolt the bolt could be installed in a similar manner by sliding in from the end and attaching with with a nut from the outside???? Basically the question is can the end trim be removed from the bar and a bolt fixing slid in past the upright roof mount brackets?? Mark
AHi Mark, Yes the end bung is removable, there is a sliding rail plate in the bar for the load stop to catch onto. Please see link below for the rail plates should you need them: https://www.vanarack.com/prod/van-guard-4-x-ulti-bar-sliding-rail-plates Kind regards Sharron Down
