2 Van Guard Ulti Bar+ Van Roof Bars

4 FREELOAD STOPSSpecial Offer

Ships Direct From Van Guard Accessories - 4pm cut off - same day dispatch - (Mon-Fri)

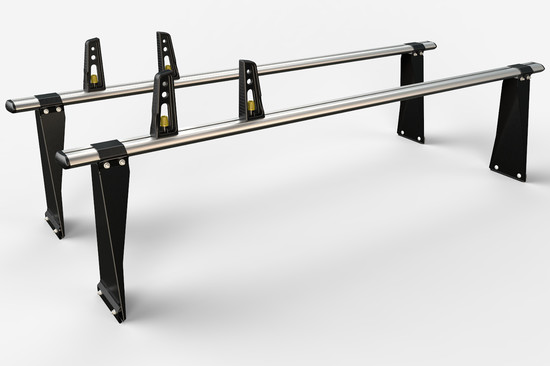

Van Guard ULTI Bar+ VG154-2 Suits the Ford Transit 2000-2014 SWB MEDIUM ROOF (L1 H2) TWIN DOOR

ULTI Bar+ - The ULTIMATE heavy duty aerodynamic van roof bar by Van Guard Accessories.

ULTI Bar+ roof bars offer possibly the best Value, aerodynamic aluminium roof bar system available today, which is why when surveyed they came out on Top as the Ultimate Van Roof Bar

During the design process ULTI Bar+ van roof bars were tested using CFD techniques and shown to offer up-to 89% less drag & up-to 70% less wind noise to competitors roof bars.

ULTI Bar+'s are made from super light-weight, high strength aluminium extrusion which is then anodised for a durable great looking finish and offer a generous 55 kg load capacity per bar.

Practical Features Built In

ULTI Bar+ features a useful T-Slot along the top of the bar, this slot allows quick mounting of the composite Load Stops which are included for Free (Worth ÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂ£48.00) & a range of Optional accessories like eye-bolts, beacon brackets and more.

Safety First

ULTI Bar+ is 20g crash tested assuring you safe transportation of loads up-to 55 kg per bar where applicable for the vehicle type.

20g Only

Fitting the ULTI Bar+ by Van Guard Accessories

ULTI Bar+ Roof Bars come complete with detailed step by step fitting instructions and fixings for quick and easy installation to the vehicles factory locations with no drilling required.

Tools required

Either

2 x 13mm spanners or sockets / ratchets

2 x 10mm spanner or socket / ratchet

1 Person Installation

See the Optional Accessories for the Van Guard ULTI Bar+ using the Accessories Tab Above

Additional Load Stops
Rear Roller
Pipe Tube Carriers
Ladder Clamps
Eyebolts
Wind Deflector

Key Features

Crash Tested
12 Month Warranty
Aeodynamic : Minimises drag & wind noise
Anodised Aluminium : Lightweight. Strong & Stylish
Two pairs adjustable load stops included
Easily Mounts to factory locations, all fixings included
Optional rear roller

Specification

MPNVG154-2
To SuitFord Transit 2000-2014 L2H3 / L3H3 / L4H3
Rear Door TypeAll
No Of Bars Included2 ULTI Bar+
Dimensions Cross Bars1850(L)60(W)30(D)
Maximum Load (kg)80 (per bar)
Bar T-Track Size21mm x 8mm
MaterialAluminium
ColourSilver
Fitted Weight (kg)14
Fitting Time (Mins)20
Height to underside of 1st bar380mm

Product questions

Product Questions

Q
I have a transit mk7 L1H2. It already has a solar panel adding 7cm to the van height. Can you please tell me the clearance height that the cross bars sit above the van roof. Many thanks Jerry
A
Hi Jerry
I can look into this when we return on Tuesday, maybe worth giving us a call to discuss your plans.
Assume you are not wishing for the roof bars to sit over the top of your solar panels?
If so i wouldn't suggest this, the shadow from the bars will have a negative effect on solar performance.
Kind Regards Jamie - 0800 411 81 20
