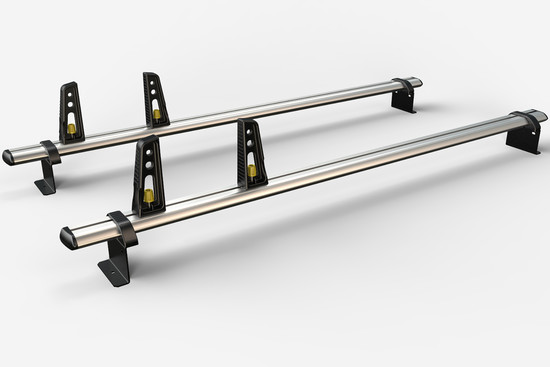

2 Van Guard Ulti Bar+ Van Roof BarsFord Transit 2014 onVG310-2
- £122.99 inc. VAT£102.49 exc. VATView product detailsProduct code: VG310-2
Van Guard ULTI Bar+ VG310-2 Suits the Ford Transit 2014 on MWB / LWB / XLWB HIGH ROOF TWIN DOOR
ULTI Bar+ - The ULTIMATE heavy duty aerodynamic van roof bar by Van Guard Accessories.
ULTI Bar+ roof bars offer possibly the best Value, aerodynamic aluminium roof bar system available today, which is why when surveyed they came out on Top as the Ultimate Van Roof Bar
During the design process ULTI Bar+ van roof bars were tested using CFD techniques and shown to offer up-to 89% less drag & up-to 70% less wind noise to competitors roof bars.
ULTI Bar+'s are made from super light-weight, high strength aluminium extrusion which is then anodised for a durable great looking finish and offer a generous 55 kg load capacity per bar.
Practical Features Built In
ULTI Bar+ features a useful T-Slot along the top of the bar, this slot allows quick mounting of the composite Load Stops which are included for Free (Worth ÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂÃÂã48.00) & a range of Optional accessories like eye-bolts, beacon brackets and more.
Safety First
ULTI Bar+ is 20g crash tested assuring you safe transportation of loads up-to 55 kg per bar where applicable for the vehicle type.
Fitting the ULTI Bar+ by Van Guard Accessories
ULTI Bar+ Roof Bars come complete with detailed step by step fitting instructions and fixings for quick and easy installation to the vehicles factory locations with no drilling required.
Tools required
Either
2 x 13mm spanners or sockets / ratchets
2 x 10mm spanner or socket / ratchet
1 Person Installation
See the Optional Accessories for the Van Guard ULTI Bar+ using the Accessories Tab Above
- Additional Load Stops
- Rear Roller
- Pipe Tube Carriers
- Ladder Clamps
- Eyebolts
- Wind Deflector
Key Features
- Crash Tested
- 12 Month Warranty
- Aeodynamic : Minimises drag & wind noise
- Anodised Aluminium : Lightweight. Strong & Stylish
- Two pairs adjustable load stops included
- Easily Mounts to factory locations, all fixings included
- Optional rear roller
Specification
- MPNVG310-2
- To SuitFord Transit 2014- L2H2 / L2H3 / L3H2 / L3H3 / L4H3
- Rear Door TypeAll
- No Of Bars Included2 ULTI Bar+
- Dimensions Cross Bars1550(L)60(W)30(D)
- Maximum Load (kg)80 (per bar)
- Bar T-Track Size21mm x 8mm
- MaterialAluminium
- ColourSilver
- Fitted Weight (kg)7
- Fitting Time (Mins)20
- Height to underside of 1st bar86mm
- 2ns bar86mm
Product Questions
- Q
I plan to buy ULTI roof bars to mount a solar panel to my Ford Transit L3H2 based camper. Can you tell me the height of the top of the bars above roof mounting surface?
AMounting point to underside of bar: 86mm
Ask a Question
If the questions listed still don't answer your question then please fill in the form below and a member of our sales team will get back to you.
