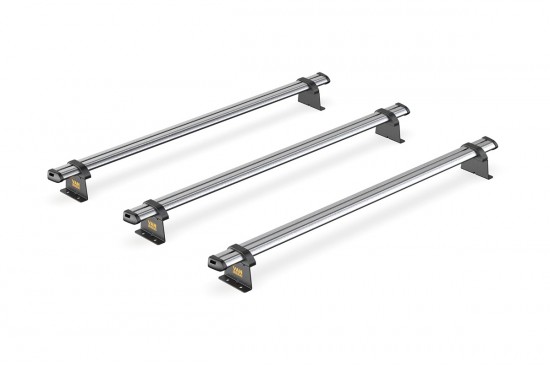

3 Van Guard Ulti Bar Trade Van Roof BarsMercedes Sprinter 2006-2018SB236-3
- £143.52 inc. VAT£119.60 exc. VATView product detailsProduct code: SB236-3
Van Guard ULTI Bar Trade SB236-3 Suits the Mercedes Sprinter 2006-2018 SWB/ MWB LOW ROOF SWB / MWB / LWB / XLWB HIGH ROOF TWIN DOOR
ULTI Bar Trade - The ULTIMATE heavy duty steel aerodynamic van roof bar by Van Guard Accessories.
ULTI Bar Trade roof bars offer possibly the best Value, aerodynamic steel roof bar system available today, which is why when surveyed they came out on Top as the Ultimate Van Roof Bar
During the design process ULTI Bar Trade van roof bars were tested using CFD techniques and shown to offer up-to 89% less drag & up-to 70% less wind noise to competitors roof bars.
ULTI Bar Trade roof bars are made from High-strength structural steel S350GD which is coated with a Magnelis coating for a durable great looking finish and offer a generous 60 kg load capacity per bar.
Practical Features Built In
ULTI Bar Trade features a useful T-Slot along the top of the bar, this slot allows quick mounting of ULTI Bar compatible accessories like Load Stops, like eye-bolts, beacon brackets and more.
Safety First
ULTI Bar Trade is tested assuring you safe transportation of loads up-to 60 kg per bar where applicable for the vehicle type.
Fitting the ULTI Bar Trade by Van Guard Accessories
ULTI Bar Trade Roof Bars come complete with detailed step by step fitting instructions and fixings for quick and easy installation to the vehicles factory locations with no drilling required.
Tools required
Either
2 x 13mm spanners or sockets / ratchets
2 x 10mm spanner or socket / ratchet
1 Person Installation
See the Optional Accessories for the Van Guard ULTI Bar Trade using the Accessories Tab Above
- Load Stops
- Rear Roller
- Pipe Tube Carriers
- Ladder Clamps
- Eyebolts
- Wind Deflector
Key Features
- Crash Tested
- 36 Month Warranty
- Aeodynamic : Minimises drag & wind noise
- Easily Mounts to factory locations, all fixings included
- Optional rear roller
- Optional Load Stops
Specification
- MPNSB236-3
- To SuitMercedes Sprinter 2006-2018 L1H1 / L1H2 / L2H1 / L2H2 / L3H2 / L4H2
- Rear Door TypeAll
- No Of Bars Included3 ULTI Bar Trade
- Dimensions Cross Bars1550(L)60(W)30(D)
- Maximum Load (kg)60 (per bar)
- Bar T-Track Size21mm x 8mm
- MaterialSteel
- ColourSilver
- Fitted Weight (kg)12
- Fitting Time (Mins)30
- Height to underside of 1st bar59mm
- 2nd bar59mm
- 3rd bar59mm
