ULTIRack+ Roof RackFiat Scudo 2007-2016L1 H1- Twin Door
- £501.18 inc. VAT£417.65 exc. VATView product detailsProduct code: VGUR-220

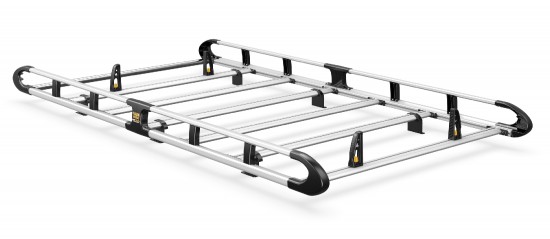

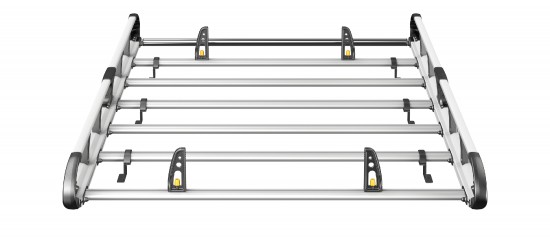

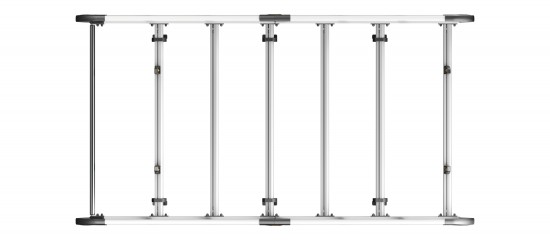

Fiat Scudo 2007-2016 L1H1 Twin Rear Doors - ULTI Rack+ Aluminium - 5 Bar Roof Rack
ULTIRack+ by Van Guard Accessories, a revolutionary van roof rack for professional work vans.
The ULTIRack+ is Van Guard Accessories latest design of roof rack, constructed from heavy duty aluminium & composites, offering a reduced fitted weight allowing for a higher payload to be carried.
As a gallery style roof rack the ULTIRack+ has evenly spaced cross bars & raised side rails making it well suited for roofing contractors, builders or trades people looking for a quiet, durable roof rack capable of carrying ladders, 8 x 4 sheets & building materials, the innovative T-Slot on every cross bar allows adjustable load stops, eyebolts and other accessories to be quickly installed & adjusted allowing multiple points to tie down. A full width stainless steel rear roller allows for simple loading and unloading without damaging the rear of your van.
The aerodynamic shape of ULTIRack+ cross bars & side rails drastically reduce wind noise & drag for a better driving experience when fitted.
Made To Last
The ULTIRack+ is manufactured from quality materials for a long lasting premium finish.
Side Rails: Aluminium | Anodised Finish
Crosstubes: Aluminium | Anodised Finish
Rear Roller: Stainless Steel
Connectors & Nose Cone: Durable Plastic | UV Protection
Safety First
Van Guard ULTIRack+ is 20g crash tested assuring you safe transportation of loads up-to 150 kg where applicable for the vehicle type.
Fitting the ULTIRack+ by Van Guard Accessories
The ULTIRack+ is quick to install & comes complete with all necessary fixings &detailed fitting instructions, with simple step by step guidance to mount to the vehicles factory locations with no drilling required.
Tools required
Either
2 x 13mm spanners or sockets / ratchets
2 x 10mm spanner or socket / ratchet
1 x Narrow Spanner (supplied in the kit)
1 x T25 Torx bit (supplied in the kit)
1 Person Installation (2 Recommended for Larger Vans)
See the Optional Accessories for the Van Guard ULTIRack+ using the Accessories Tab Above
- Pipe Carriers
- Ladder Clamps
- Ladder Slide & Secure
- Eye Bolts (T-slot Mounted)
- Additional Load Stops (T-slot Mounted)
Key Features
- Heavy Duty & Lightweight
- Aerodynamic Design
- Anodised Aluminium & Composite Construction
- Full Width Rear Roller Included
- 8 x 4 Capacity (Ideal for sheet materials)
- T-Slot Cross Bars
- 4 Adjustable Load Stops Included
- Fitting Instructions & All Fixings Included
- Quick & Easy Installation
- Designed & Made in Britian
Specification
- MPNVGUR-220
- To SuitFiat Scudo 2007-2016 L1H1
- Rear Door TypeTwin Rear
- Fitted Weight (kg)26
- Maximum Load (kg)150
- ULTIRack+ Overall Width1491mm
- ULTIRack+ Overall Length2800mm
- Side rail height175mm
- No Of Bars Included5 ULTI Rack Cross Bars+
- Dimensions Cross Bars1354(L)60(W)30(D)
- Bar T-Track Size21mm x 8mm
- Height to underside of 1st bar82mm
- Height to underside of 2nd bar62mm
- Height to underside 3rd bar75mm
- MaterialAluminium
- ColourSilver
- Fitting Time (Mins)45
